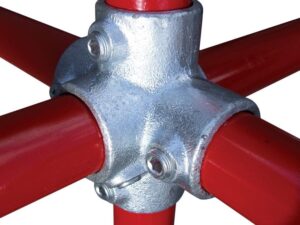

The 4-way cross Q Clamp 158-4 is used to join four horizontal 48.3mm diameter tubes at 90-degree angles with a single vertical tube able to pass through the centre of the clamp. This product is mainly used on structures with multiple upright vertical tubes, like storage racking, play areas for children, large warehouse shelving units, animal enclosures, etc.

** Please note we do not stock the Q-Clamps at our yard; they are ordered directly from our supplier, and lead times will range from 2-5 working days. ** To get a quote for the Q Clamps, please add the required items to the cart and then check out, and we will get back to you with prices.

More Info

This Q Clamp weighs around 1.61kg, has a thickness of 60mm, is made from blackheart malleable iron and is manufactured to BS EN 1562:1997 standards. Five stainless steel grub screws will be supplied with this product. The 4-way cross-clamp is often used with the inline external tube connector (149-4) to connect vertical tubes together.

Dimensions and Specifications

Specifications	Dimensions
Condition	NEW
Product Code	158-4
Fits How Many Tube	5
Thickness	60mm
To Fit Tube Size	48.3mm
Made From	Blackheart Iron
Weight	1.61kg Approx.
Standards	BS EN 1562:1997
