Engineered for professional use, these 600mm staging boards are manufactured in accordance with BS 2037 Class 1 standards, ensuring consistent load performance and reliability across all sizes. The construction is designed to withstand regular site use, with reinforced components that maintain structural integrity under demanding conditions.

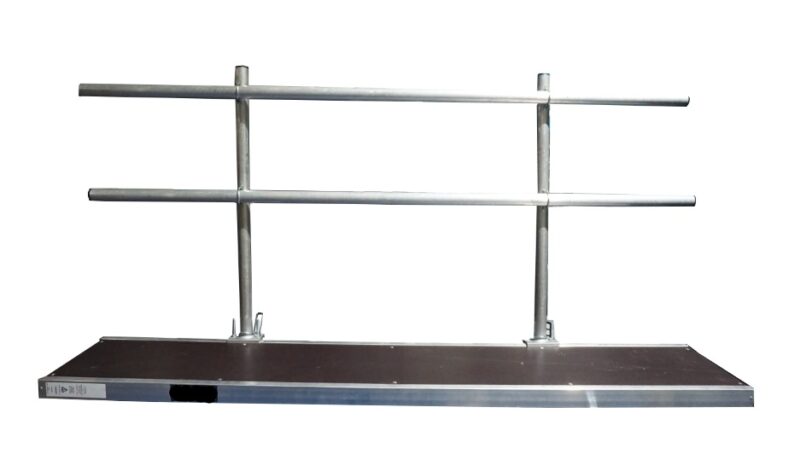

The single-sided handrail system, supported by two guardrail poles, provides practical edge protection while allowing unobstructed access along the platform. This makes the boards particularly suited to environments where safety is essential but workflow must remain efficient, such as scaffold setups, maintenance work, and trade applications.
Dimensions & specifications
| Length | Board Width | Board Depth | Board Weight | Handrail Kit Weight | Total Weight | Posts | Handrail Tubes | Min. Overlap on Supports |
|---|---|---|---|---|---|---|---|---|
| 2.44m (8ft) | 600mm | 70mm | 17–18kg | 6–8kg | 23–26kg | 2 | 2 × 2.4m | 300mm |
| 3.05m (10ft) | 600mm | 70mm | 20–22kg | 7–9kg | 27–31kg | 2 | 2 × 3.0m | 300mm |
| 3.65m (12ft) | 600mm | 70mm | 24–26kg | 8–10kg | 32–36kg | 3 | 2 × 3.6m | 300mm |
| 4.20m (14ft) | 600mm | 75mm | 27–30kg | 9–11kg | 36–41kg | 3 | 2 × 4.2m | 300mm |
| 4.80m (16ft) | 600mm | 100mm | 35–39kg | 10–12kg | 45–51kg | 3 | 2 × 4.8m | 300mm |
| 5.40m (18ft) | 600mm | 100mm | 42–45kg | 11–13kg | 53–58kg | 4 | 2 × 2.4m + 2 × 3.0m | 300mm |
| 5.95m (20ft) | 600mm | 100mm | 47–52kg | 12–14kg | 59–66kg | 4–5 | 2 × 2.4m + 2 × 3.6m | 300mm |
Key features
- Single-sided handrail with two guardrail poles – Provides effective edge protection while maintaining easy access
- Extra-wide 600mm platform – More room for movement, tools, and materials
- Lightweight aluminium frame – Strong, durable, and easy to handle on site
- Non-slip phenolic decking – Reliable grip in wet and dry conditions
- BS 2037 class 1 rated – Built to meet professional UK standards
- Rubber inserts & end caps – Helps reduce movement and protects supports
- Available in multiple lengths – From 2.44m to 5.95m for flexible setups
Benefits
These 600mm staging boards with a single handrail offer an ideal balance between safety, practicality, and efficiency. The integrated handrail system, supported by two guardrail poles, provides added reassurance when working at height by helping reduce the risk of falls while still allowing unrestricted access from one side.
The wider platform improves comfort and stability, making it easier to work for longer periods without constant repositioning. Lightweight aluminium construction ensures quick handling and setup, while the durable, weather-resistant materials deliver long-term performance with minimal maintenance, making them a reliable choice for regular professional use.
What are they used for?
These boards are designed to create safe, temporary elevated working platforms across a wide range of applications:
- Painting & decorating – Safer movement along walls and ceilings
- Plastering & rendering – Stable platform with space for tools
- Roofing & guttering work – Added edge protection at height
- Window installation & glazing – Improved safety for precision tasks
- Electrical & mechanical work – Secure access for overhead installations
- General construction & maintenance – Domestic and commercial use
- Event & temporary platforms – Safe staging and access solutions
The addition of a single-sided handrail makes them particularly suitable for jobs where extra safety is required without restricting workflow.
Safety & compliance
All staging boards should be used in accordance with the Work at Height Regulations. Always inspect equipment before use, ensure correct support spacing, and securely fit the handrail system. While the two-pole handrail setup provides added protection, additional safety measures may be required depending on the working environment and risk assessment.
Frequently asked questions
What is the main advantage of choosing single-sided handrails on 600mm staging boards?
Single-sided handrails provide essential edge protection on one side while leaving the opposite side completely open. This design is ideal when the open side faces a wall, window, or existing structure, allowing easier access for materials and tools without obstruction.
How high are the handrails on the single-sided version?
The handrail system is designed in line with UK Work at Height Regulations, with the top rail positioned approximately 950mm–1000mm above the platform. An intermediate (mid) rail is also included and positioned so that the gap between rails does not exceed 470mm, providing effective edge protection and reducing the risk of falls.
Can I add toe boards to the single-sided handrail kit?
Yes. The single-sided system includes provision for timber toe boards on the railed side to prevent tools or materials from falling off the edge. Toe boards on the open side can be added separately if required by your risk assessment.
Is the single-sided handrail kit quick to assemble on site?

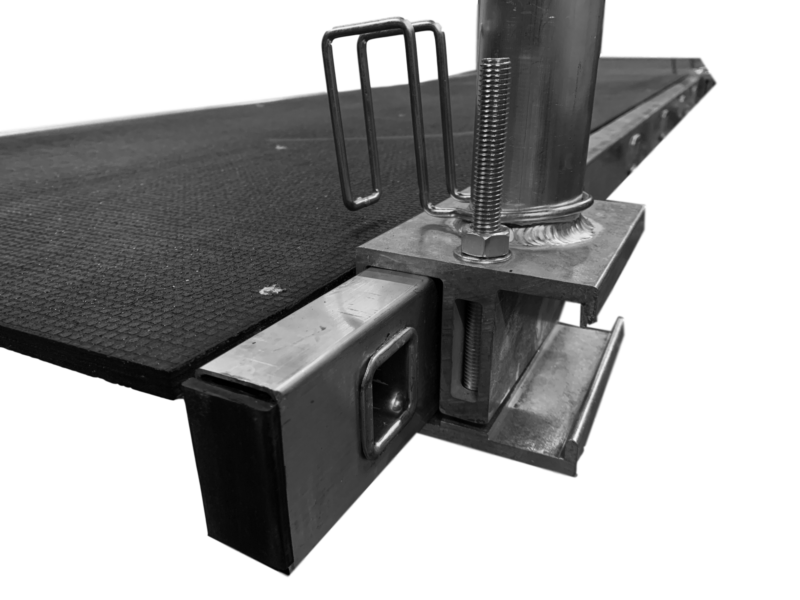

The kit uses clamp-on aluminium posts and tubes that secure firmly to the 600mm board. Most users can fit the full single-sided handrail system in under 10 minutes per board using basic tools, making it suitable for fast-turnaround jobs.
When is single-sided handrailing the preferred choice over double-sided?
Single-sided is preferred when working close to a wall, façade, or fixed structure where one side is naturally protected. It reduces weight, cost, and setup time while still meeting safety requirements for many painting, rendering, and maintenance tasks.
Does the single-sided handrail affect the 270kg load capacity?
No. The handrail system is designed as an accessory and does not reduce the board’s certified 270kg distributed load capacity (BS 2037 Class 1). Always ensure even load distribution across the platform.
Are the handrail posts compatible with all lengths of 600mm boards?
Yes. The clamp-on posts are fully adjustable and compatible with every length in the range (2.44m to 5.95m). Spacing between posts is kept under 2.4m to maintain the structural integrity of the handrail run.
How do I store the single-sided handrail components when not in use?
The aluminium posts and tubes are lightweight and can be bundled together. Most contractors store them flat alongside the staging boards in a dry area to prevent any cosmetic damage to the powder-coated finish.
