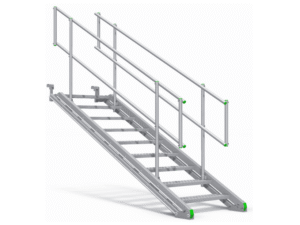

Our Ranger stairs with handrails are made entirely from aluminium. They will arrive flat-packed and pre-assembled. They are versatile and can be used to build stair towers that connect to traditional scaffolding, systems scaffolds, and other non-scaffolding-related applications.
The overall standard width of this product is 812mm, and they have a 680mm clear width (this is the length of the tread). The Ranger stairs are available in the following treads, with details below of their minimum and maximum angle heights and the number of handrails supplied for each tread size:
Ranger stairs vs ladders?
- They can be a safer choice than ladders because they have wide, perforated, non-slip treads that can support 2 people at a time, and they also feature integral locking devices within the footplate to ensure they remain entirely secure when in use.
- Guardrails are supplied with the ranger stairs you purchase from us and are an essential safety requirement; they feature a simple spring mechanism for releasing the guardrails and are available in the following sizes: short (5.9kg) and long (7.3kg).
- The stair body comes with standard brackets called tube connectors, left and right, each weighing approximately 1.36 kg.
Dimensions and specifications
| Treads | Height Angle | Weight | Handrails | Overall Width | Clear Width |
| 3 | 57 to 783mm | 18.49kg | No handrails | 812mm | 680mm |
| 6 | 985 to 1457mm | 29.66kg | 2x short | 812mm | 680mm |
| 9 | 1412 to 2130mm | 40.71kg | 2x long | 812mm | 680mm |
| 12 | 1840 to 2804mm | 51.92kg | 2x long and 4x short | 812mm | 680mm |
| 15 | 2267 to 3478mm | 62.91kg | 2x short and 2x long | 812mm | 680mm |
| 18 | 2690 to 4146mm | 74.50kg | 4x long | 812mm | 680mm |
What uses do Ranger stair systems have?
- These stairs can be used to access pitched roofs, inclined slopes, stages, fire escapes, events, offshore facilities, factories and warehouses, machinery, temporary offices, and much more.
- They will automatically adjust to a range of lift heights and angles.
- The Ranger stairs comply with BS EN 12811-1 and have a uniformly distributed load of 1.5 kN/m2.
- These stairs have minimal components and a quick assembly time, as no spanner work is required.
Need an alternative access solution?
If the Ranger Staircase with its lightweight aluminium construction and 1.5kN/m² load capacity proves unsuitable due to requirements for heavier loads, taller structures beyond ~4m, greater durability in heavy-duty industrial settings, or confined stairwell environments, both our prefabricated access staircase system (galvanised steel modular design for superior strength, higher capacities, and heights up to 10m+ in demanding construction) and the stairwell scaffold tower (narrow 760mm aluminium tower optimised for tight internal stairwells with 550kg capacity and stability features like adjustable legs and wall props) offer excellent specialised alternatives tailored to those specific site constraints.
