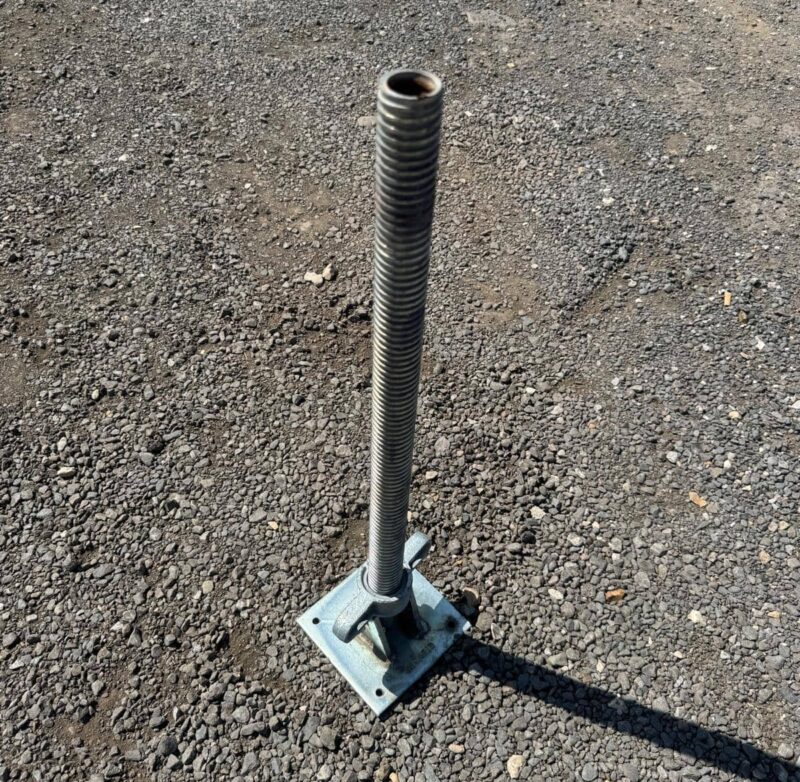

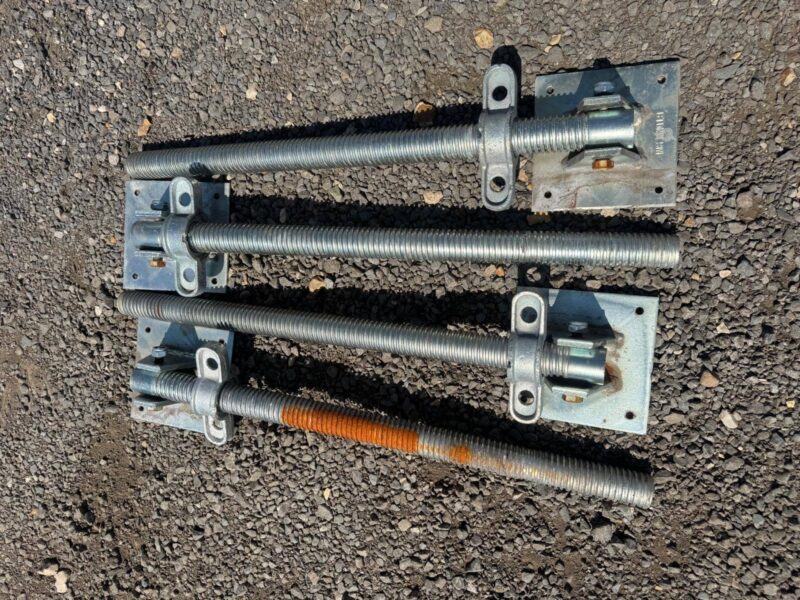

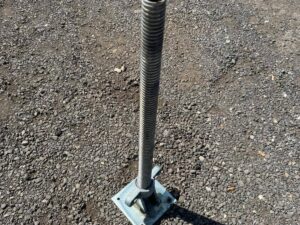

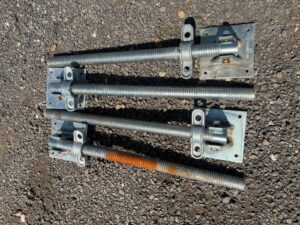

6-Ton Swivel Base Jack

Swivel scaffold jacks for sale

They are suitable for the following: scaffolding structures placed on uneven ground, on the out-riggers of a mobile scaffold tower, at vehicle repair shops, within construction sites, for maintenance, formwork, marine and falsework. The swivel scaffold jacks can be used with traditional tube and fitting scaffolding and system scaffolds like cuplok, ringlock, kwikstage and aluminium towers.

The 6-ton swivel base jacks’ overall height is 650mm, the base plate measures 150mm x 150mm and is 6mm thick, the thread is 4Tpi Acme 650mm x 38mm outside diameter, and this product weighs approximately 4.7kg. Please note all measurements are approximate.

The key features of a 6-ton swivel base jack include:

• They can be adjusted from 0mm to a maximum of 500mm.
• They have a durable construction that is built for heavy use and harsh environments.
• The swivel jacks can be placed at any angle.
• Equipped with a safety mechanism to prevent accidental lowering.

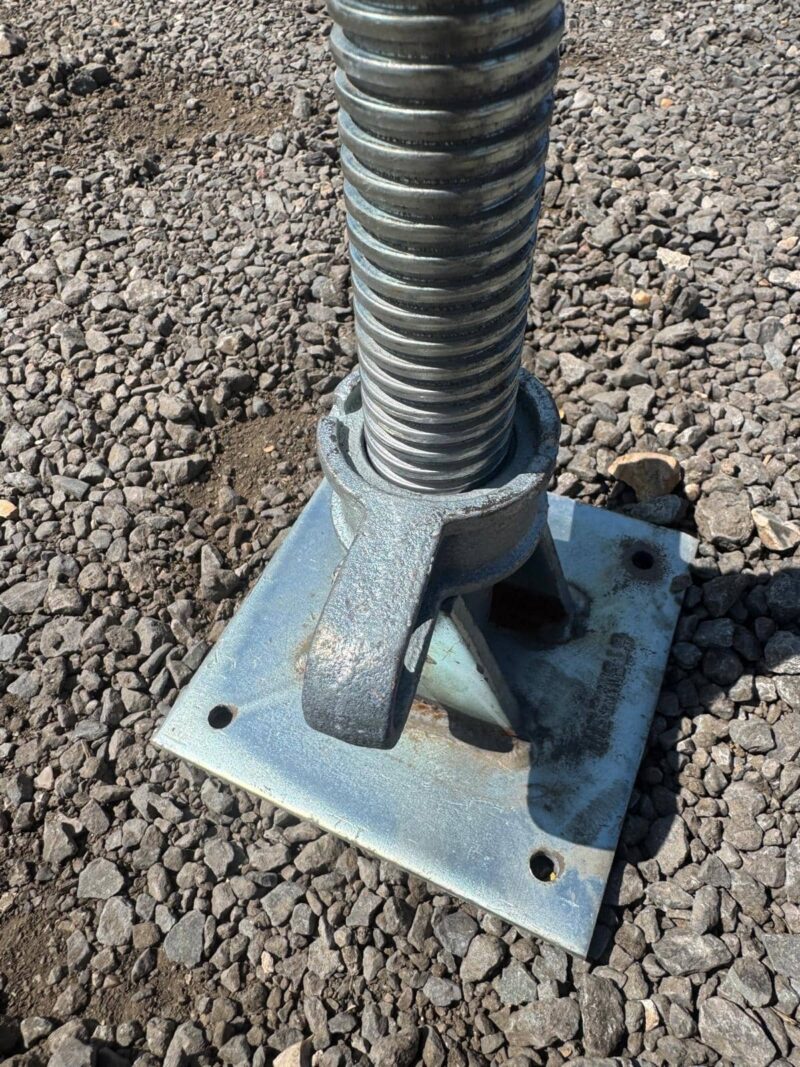

• The jack comprises a swivel base plate, threaded tube and a scaffold jack nut handle (wing nut).
• Features an adjustable double-wing nut.
• They are manufactured and tested to BS4360/43A, BS1139 & EN74 standards.

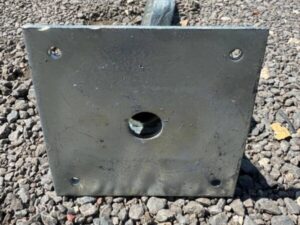

• The base plate has holes to secure it to the ground if required.
• The 6-ton swivel base jack can also be known as a rocker base jack, swivel jack scaffold, or swivel base screw jack.
• The main difference between a standard scaffold base jack is that the thread tubing is fixed to the base plate in an upright position, whereas the thread on a swivel scaffold jack is moveable in various positions.
