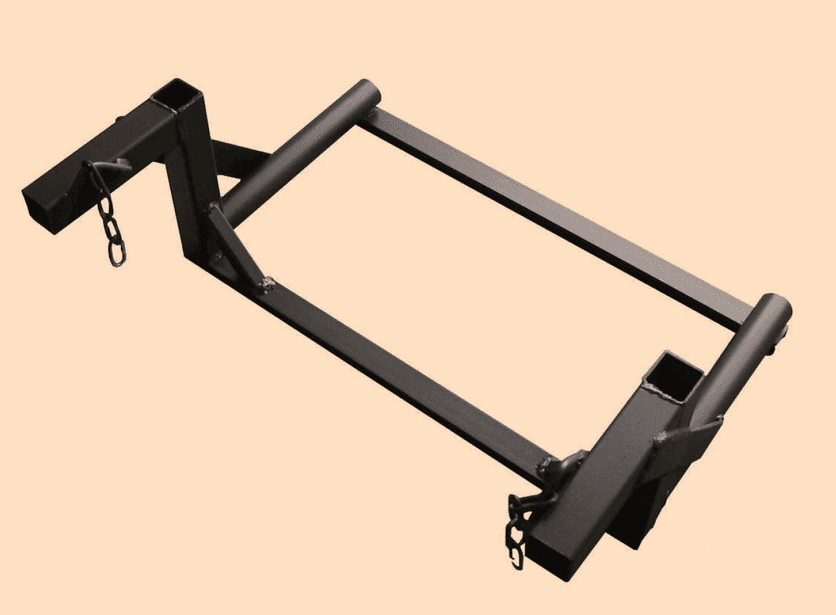

The universal rubbish chute fixing frame is connected to a scaffold and is fixed to the upper section of the rubbish chute system, where the top hopper is slotted onto it. The fixing frame is 20 inches wide, weighs approximately 14kg, and is made from galvanised steel with a black finish.
The frame and its system are used to safely dispose of debris, rubble, waste, and other materials from a height into a skip at ground level. The bracket holds the entire chute system in place. They can take approximately 100-150kg, including the bracket.
More Info
- It is recommended that no more than 35 rubbish chute sections be attached at any one time.
- They are also known as fixing brackets or rubble chute fixing frames.
- To install, the frame is attached to two ledger scaffold tubes, which should be approximately 300mm apart, and then the fixing frame should be secured using two double couplers. The short chains of the frame are then connected to the first chute section.
- This bracket can also be fixed onto windowsills.
- The universal fixing frame is reusable; however, you should always check for damage before use.
Dimensions and Specifications
| Specifications | Dimensions |
| Condition | NEW |
| Frame Size | 20 Inches Wide |
| Weight | 14kg Approx. |
| Colour | Black |
| Made From | Galvanised Steel |
