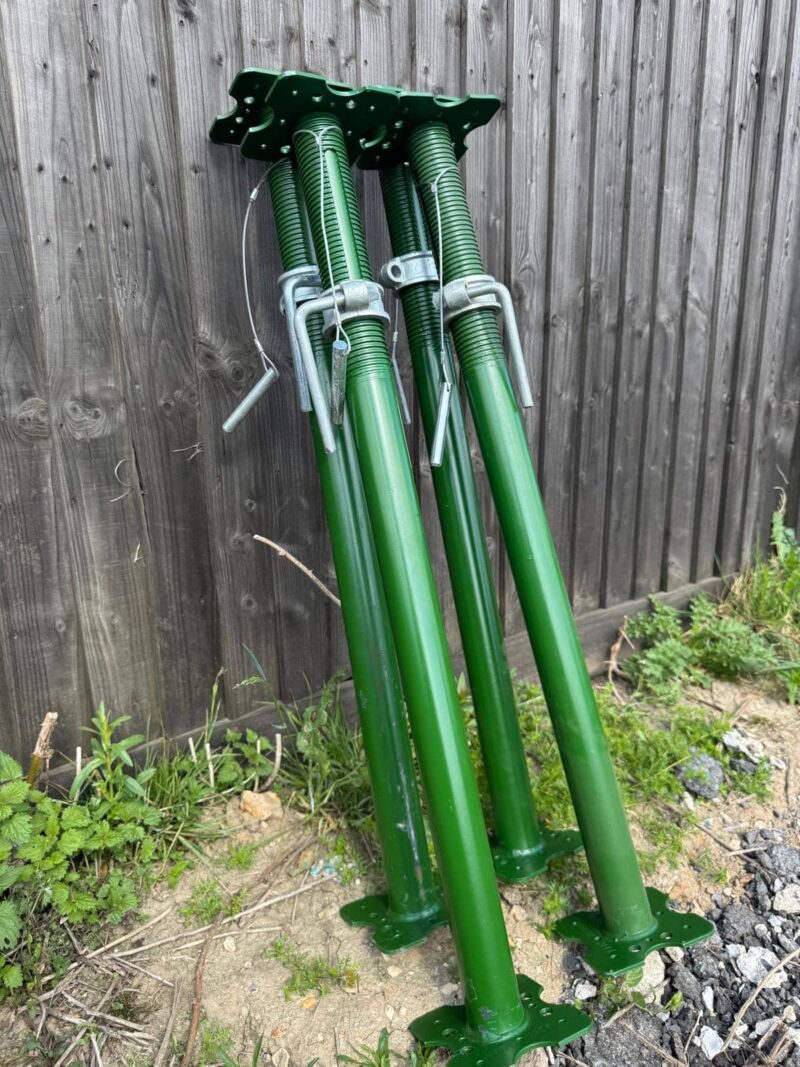

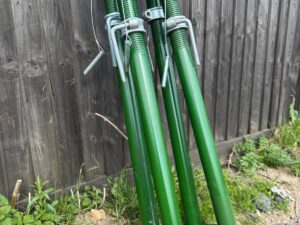

Unlike smaller props used in confined areas, the size 2 acrow prop is engineered to handle broader working heights without sacrificing stability. It is commonly selected for projects where flexibility is essential, such as extensions, refurbishments, and structural alterations. The combination of an inner sliding tube, outer casing, and adjustable collar allows for controlled extension, while the locking pin secures the load in position. This balance of reach and strength makes it one of the most widely used prop sizes on-site.
Dimensions
| Specification | Measurement |
|---|---|
| Minimum Height | 1.98m |
| Maximum Height | 3.35m |
| Outer Tube | 60.3mm diameter |
| Inner Tube | 48.3mm diameter |
| Weight (Approx.) | 16–20kg |
| Plate Size | 150mm x 150mm |
| Load Capacity* | Up to ~34kN (closed) |
Key features
- A fully extendable body allows coverage across a versatile height range
- The solid steel construction provides dependable structural strength

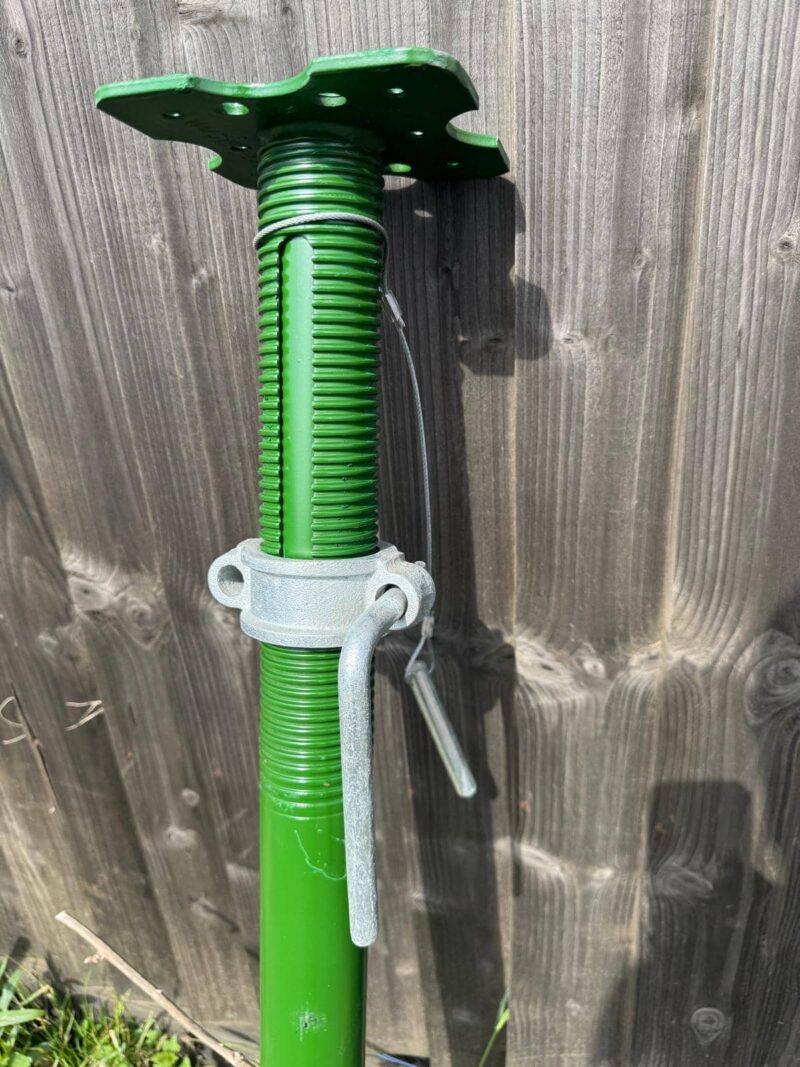

- An integrated adjustment thread enables fine height control under load
- A secure steel pin locks the inner tube safely into position
- The protective finish helps guard against rust and site wear

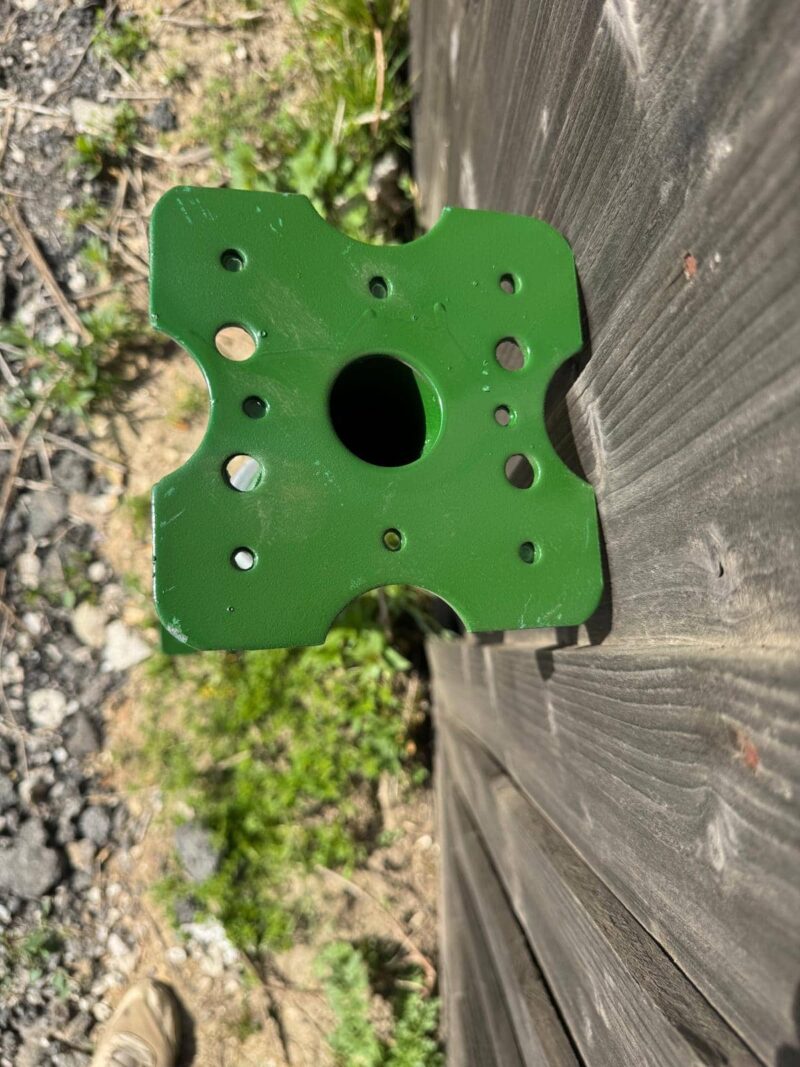

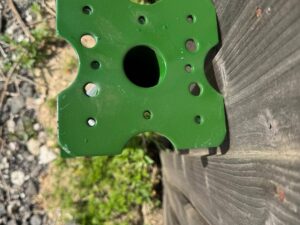

- Wide load plates at both ends improve contact and stability
- Each unit is produced in line with recognised construction standards
- Easy integration with attachments such as strongboys and prop heads
Benefits
Greater flexibility across typical build heights
Well-suited to the majority of residential construction and renovation tasks.
Reliable support during structural work
Provides essential stability when removing walls or installing steel beams.
Reduced setup time on-site
Quick to position and adjust, helping keep projects moving efficiently.
Designed for repeat use
Built to withstand ongoing use in demanding environments.
Consistent strength where it matters
Maintains performance across a wide range of applications and load conditions.
Common uses on site

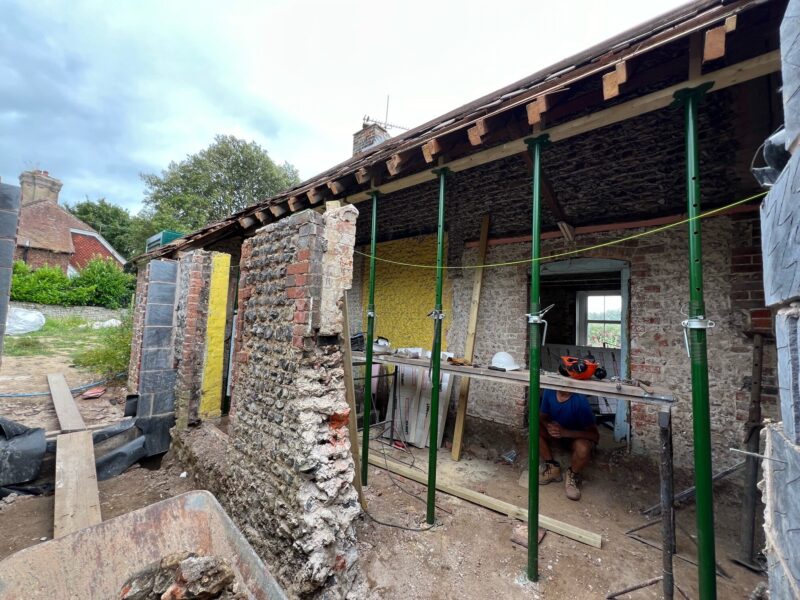

- Temporary support for ceilings and upper floors
- Installation of RSJs and structural beams
- Stabilising openings during wall removal
- Supporting shuttering and formwork systems
- General-purpose propping in construction projects
Safety considerations
- Always install props vertically on a stable base
- Use additional support, such as timber sole plates, if required
- Do not exceed the recommended load limits at any extension
- Check for wear, bending, or damage before use
- Ensure correct installation by competent personnel
Frequently asked questions
What is the extension range for size 2 acrow props?
Size 2 acrow props can be adjusted from approximately 1.98m to 3.35m, suitable for standard floor-to-ceiling heights in many commercial and residential builds.
How much does a size 2 acrow prop weigh?
Approximately 20kg, requiring careful handling but still practical for site use.
What applications suit size 2 acrow props best?
Ideal for supporting beams, slabs, and formwork in multi-storey construction, or where medium-tall temporary supports are needed at heights of 2–3.35 metres.
What should I know about load ratings for size 2 acrow props?
Safe working loads are significant at lower heights but reduce towards full extension. Use manufacturer charts to ensure loads stay within limits (typically 15–35kN range).
How important is vertical alignment for size 2 acrow props?
Critical, maintain within 1.5 degrees of plumb to maximise load capacity and safety at these heights.
Are size 2 acrow props compatible with U-heads or other accessories?
Yes, they work well with various head attachments like U-heads for bearer support or flat plates for distributed loading.
When would a contractor select size 2 acrow props over size 1 or 3?
Choose size 2 acrow props when your required propping height falls squarely in the 1.98m to 3.35m range for optimal strength and efficiency.
Tips for safe use of size 2 acrow props?
Always use on stable ground with sole plates, avoid side loading, and never use damaged props. Regular inspection of the pin and collar is essential.
