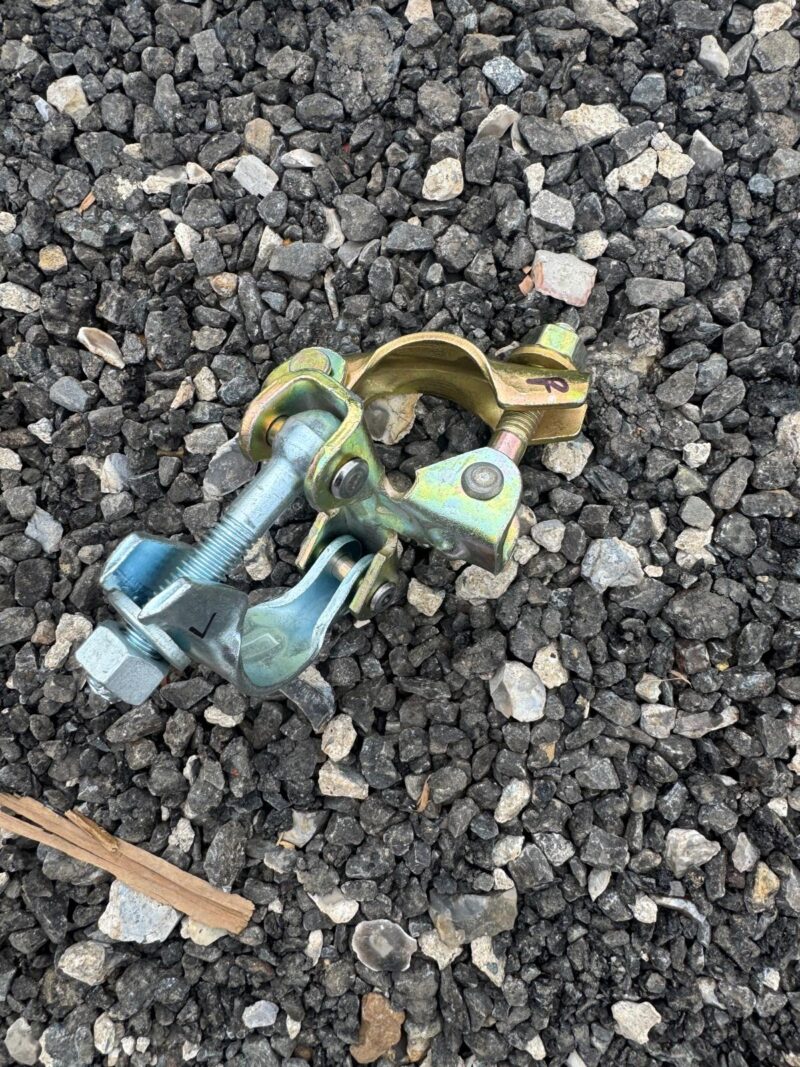

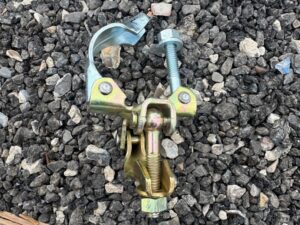

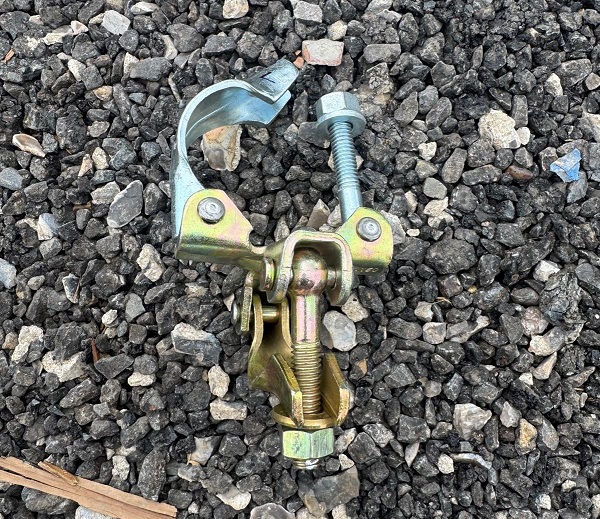

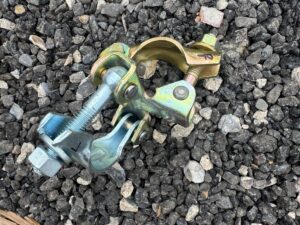

Prop to Tube Double Coupler

What distinguishes the prop to tube double coupler from the swivel version?

Unlike the swivel coupler, which allows for adjustable angles, the double coupler maintains a rigid 90-degree connection. This makes it preferable for applications that require fixed positioning, as it maximises stability under load.

How do I ensure proper installation of this coupler?

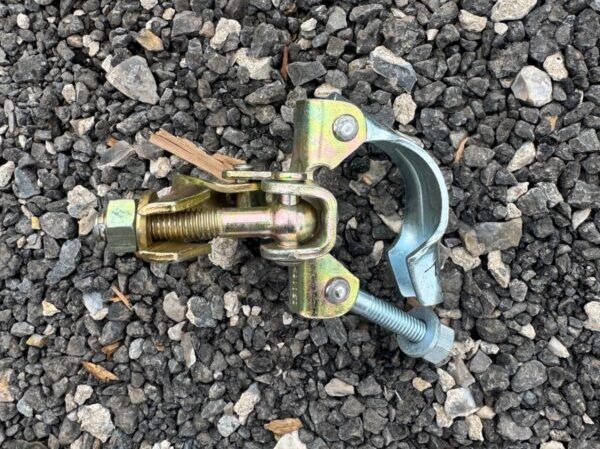

Position the larger opening over the acrow prop’s outer tube and the smaller over the scaffold tube, then tighten the bolts securely. Always verify alignment and conduct a visual inspection before applying weight to confirm a snug fit.

Is this coupler suitable for outdoor use?

Yes, thanks to its galvanised zinc coating, it offers excellent resistance to weathering and corrosion, making it ideal for both indoor and outdoor construction sites.

What maintenance is recommended to prolong its lifespan?

Regularly check for signs of wear, cracks, or deformation. Clean after use and apply a light oil to threaded areas. Store in a dry environment to prevent unnecessary exposure to moisture.

Can this coupler be used with non-standard tube sizes?

It is optimised for 48.3mm scaffold tubes and 60mm acrow props. Using it with other sizes may compromise safety and is not recommended; always adhere to compatible dimensions for compliance.

What is the fixed angle of a prop-to-tube double coupler?

A prop-to-tube double coupler fixes scaffold tubes to acrow props at a 90-degree angle, creating a rigid, non-movable connection. In contrast, a prop-to-tube swivel coupler allows angular adjustment.

Does the prop-to-tube double coupler meet quality standards?

Yes. It fully complies with BS1139 and EN74-2 quality and safety standards.

What is the primary function of a prop-to-tube double coupler?

Its primary purpose is to enhance the stability and strength of shoring systems. It provides a secure structural connection between scaffold tubes and acrow props, forming a reliable framework for a wide range of construction applications.

Is the prop-to-tube double coupler load-bearing?

Yes. The coupler is designed for load-bearing use and has an approximate working load limit of 6.10 kN at the scaffold tube section. This makes it suitable for demanding building and construction projects where acrow props must safely support significant loads.

What sizes and specifications are available for this product to ensure proper compatibility?

Compatibility and sizing guide

This table highlights exact fit requirements, helping users quickly confirm suitability and avoid mismatches.

Can this coupler be used with aluminium scaffold tubes?

No, it is optimised for standard steel scaffold tubes (48.3mm OD). Aluminium tubes have different properties and tolerances; using incompatible materials can lead to poor grip, slippage, or failure. Stick to steel tubes for compliance and safety.

What should I check during inspections before and after each use?

Inspect for cracks, deformation, excessive wear on the jaws, rust penetrating the galvanising, or seized/stripped nuts and bolts. Ensure the bolt threads are clean and functional. Discard any damaged units immediately—never use a compromised coupler in load-bearing applications.

Is this coupler suitable for diagonal bracing, or only for perpendicular bracing?

This fixed 90-degree version is designed for right-angle connections only. For diagonal or adjustable bracing (e.g., raking shores), use the prop-to-tube swivel coupler instead, which allows variable angles while maintaining load capacity.

How many of these couplers do I need for bracing an acrow prop?

It depends on the load, height, and setup; common practice is to use at least two per prop (one near the top and one near the base) for diagonal or perpendicular bracing to prevent buckling or lateral movement. For heavy shoring, consult a structural engineer or follow temporary works design guidelines.
