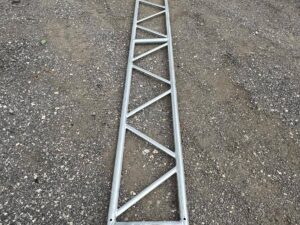

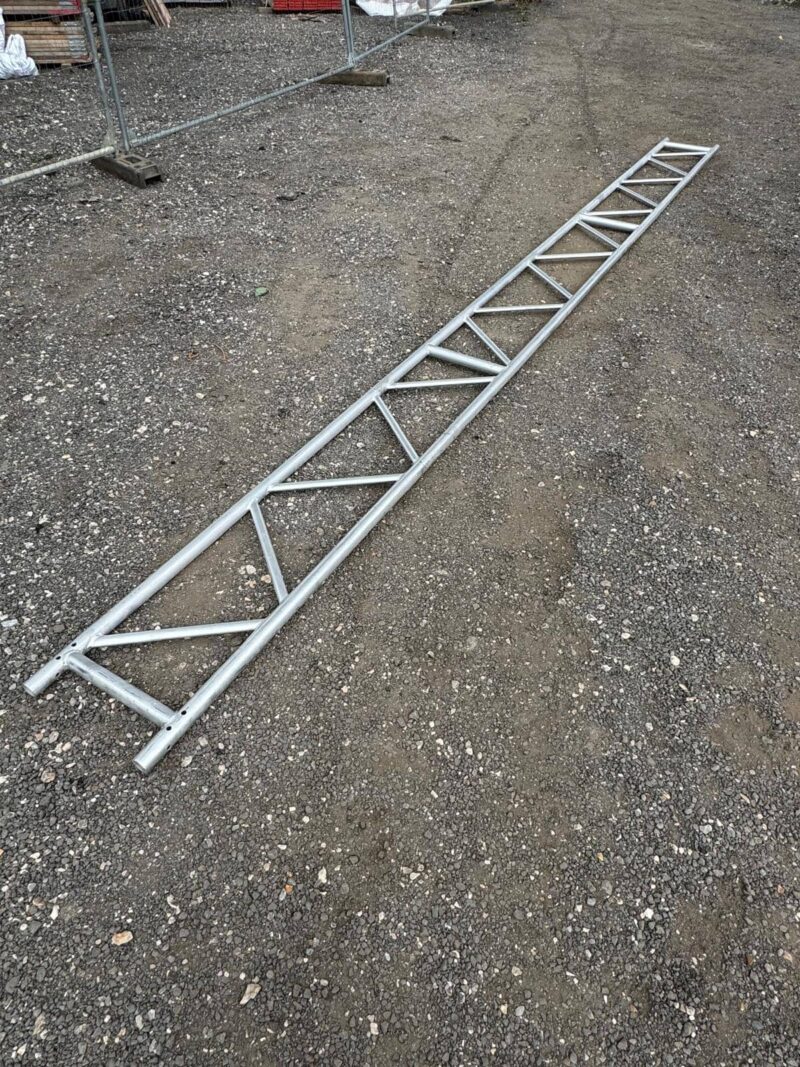

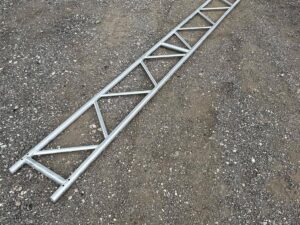

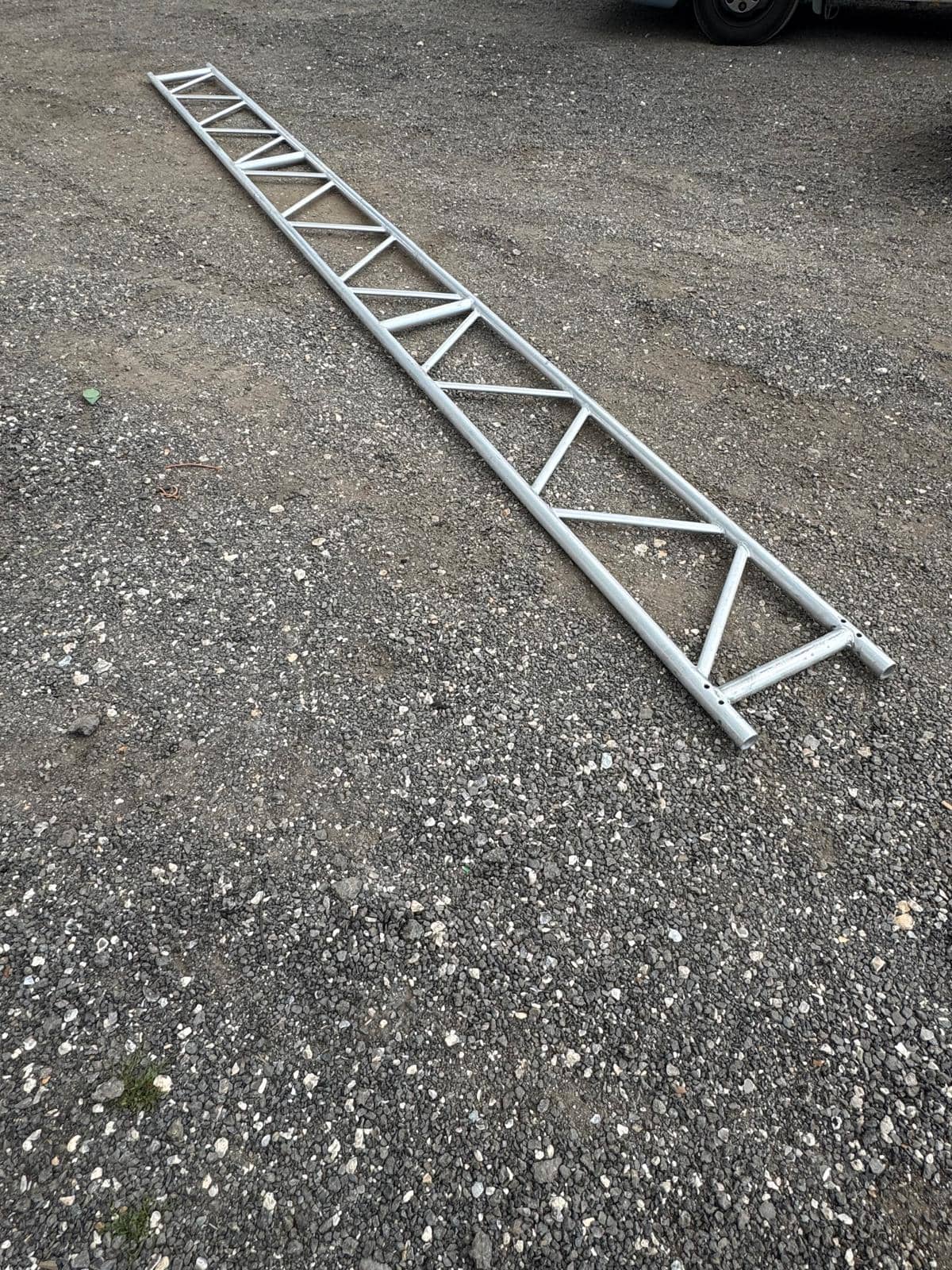

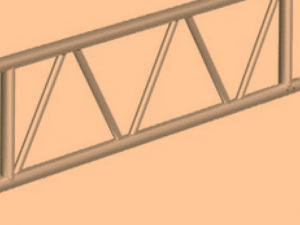

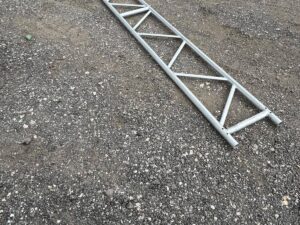

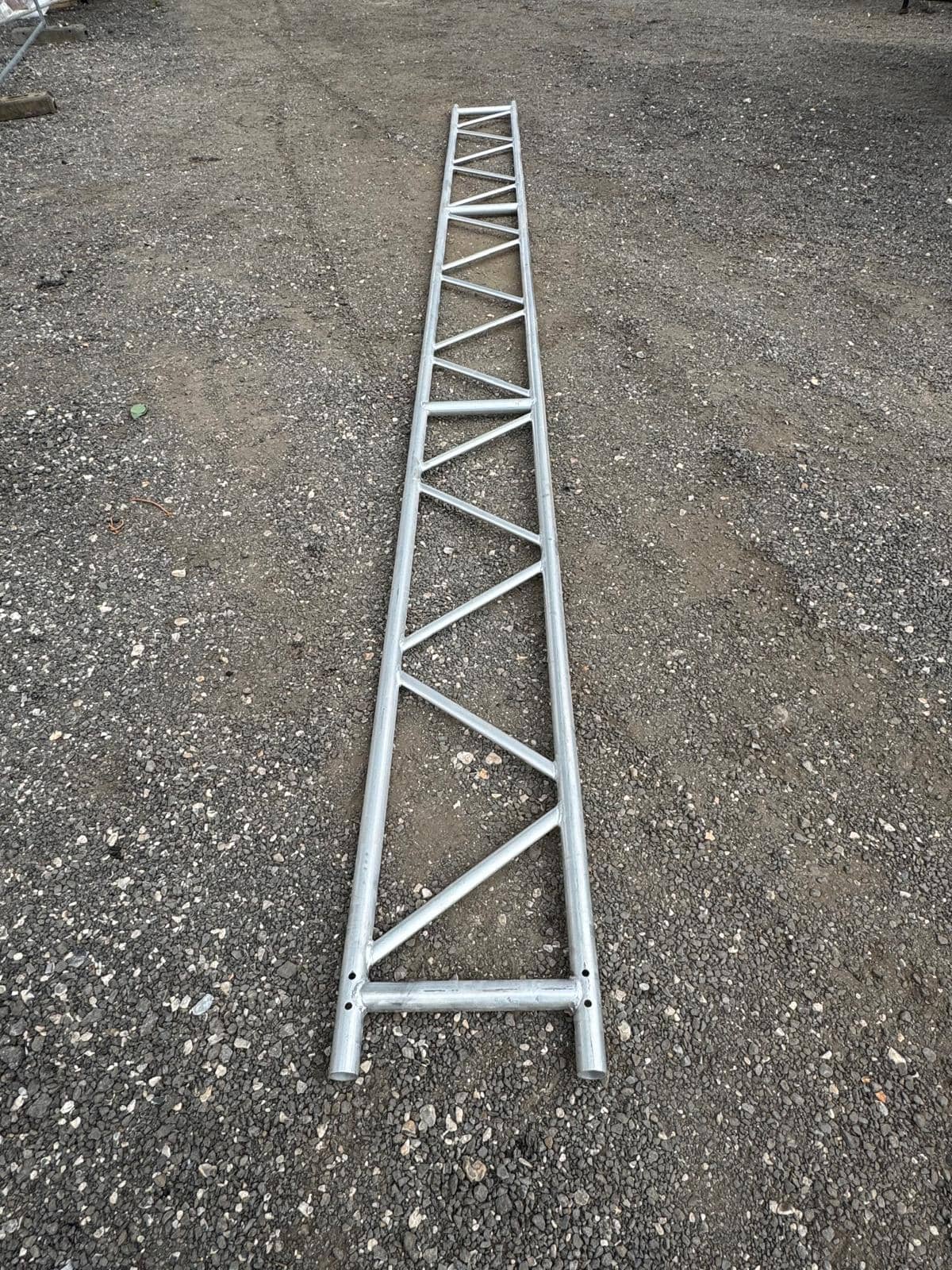

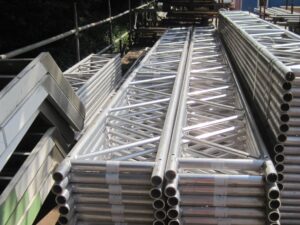

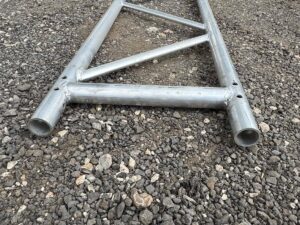

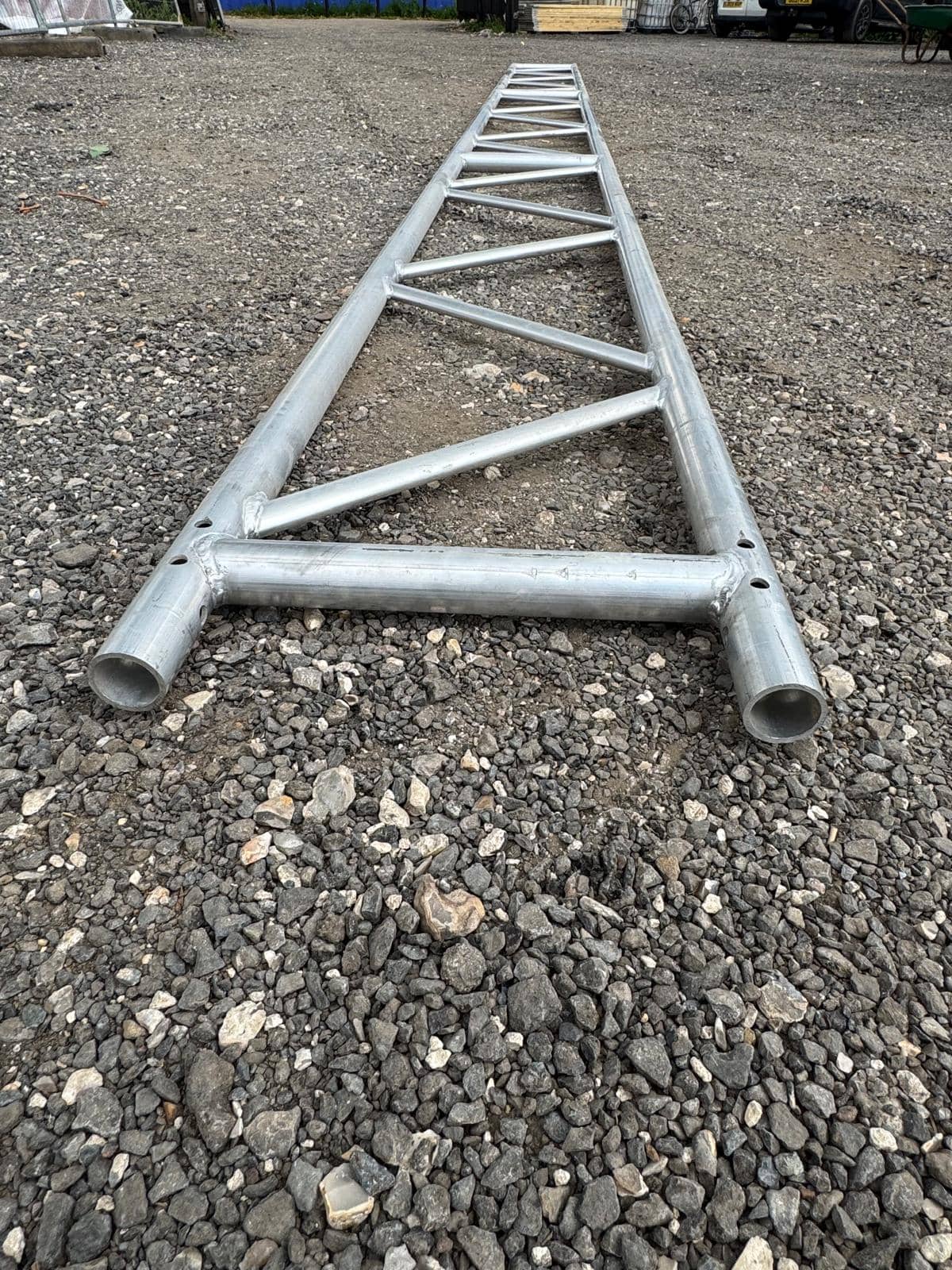

Our 6.1m aluminium scaffold beams are 450mm wide and suitable for load-bearing applications, including suspended or mobile platforms, birdcages, bridges, spanning over conservatories and temporary roofing structures, but should always be subject to structural designs.
- The beams’ parallel chords and vertical sections are 48.3mm in diameter.
- They have been specifically designed to provide the highest load capacity (UDL).
- This length beam weighs approximately 23.94kg.
.
More info
- The strength and bending moments of a 6.1m alloy beam are a permissible moment of 20.2kNm and a permissible shear of 11.7kN.
- These beams conform to BS EN 1999-1-1, Eurocode 9 standards.
- Two separate 6.1m scaffold beams can be joined end to end using an internal spigot connector with quick-release spring pins.
- Two spigots and eight spring pins are required to connect the beams together.
- Other uses include light rigging, concert or event staging, and gym equipment support.
- The 6.1m aluminium scaffold beams can also be known as lattice or alloy beams.
Dimensions and Specifications
| Specifications | Dimensions |
| Condition | New |
| Length | 6.1m |
| Width | 450mm |
| Tubing Diamater | 48.3mm |
| Wall Thickness | 4.0mm |
| Weight | 23.94kg Approx. |
| Made From | 6082 Aluminium Metal |
| Standard | BS EN 39:2001 |
