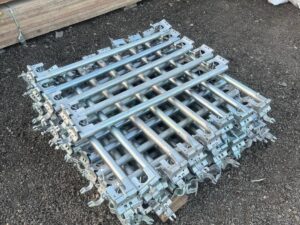

Readylok transoms are metal units on which scaffold boards are placed to create the working platform. They can be used on traditional tube-and-fitting scaffolds or system scaffolds, as they are designed to speed up and economise scaffolding installation by reducing the number of fittings required compared to conventional steel scaffolds.

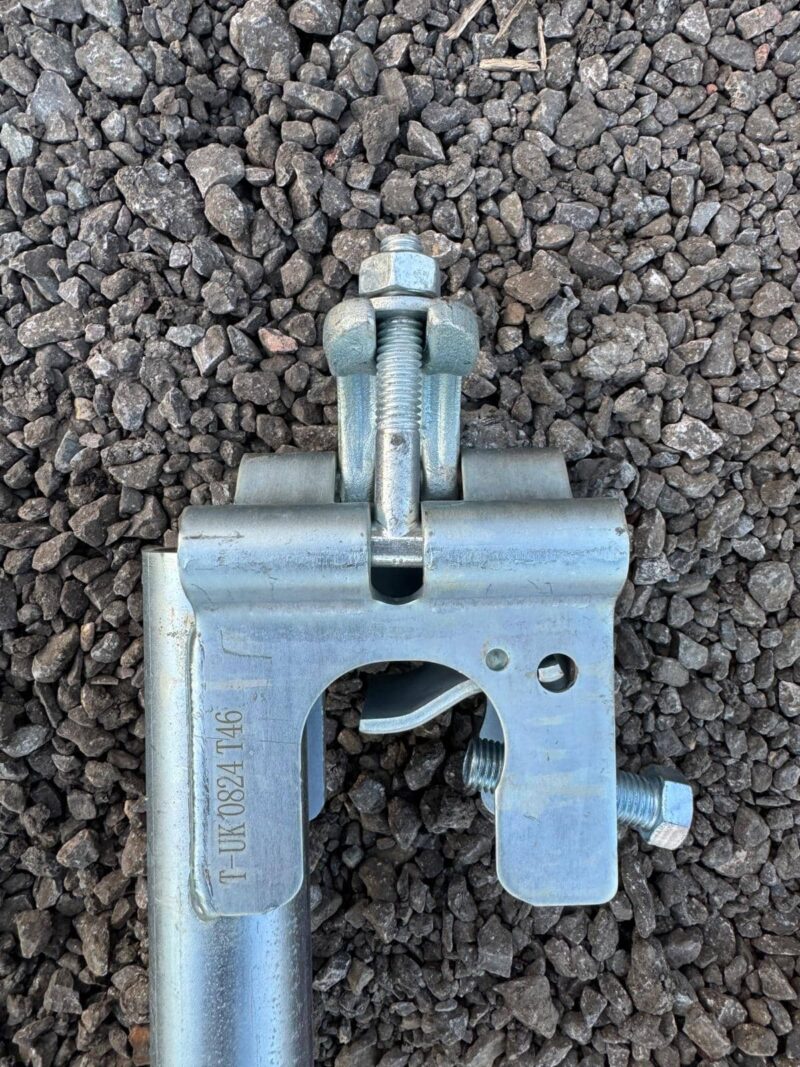

The Readylok transoms provide support and increase stability for upright tubes and ledgers in a scaffolding structure. They are made in set sizes with fixed couplers on the ends, which attach standards (vertical) and ledger (horizontal) tubes in the correct position whilst providing self-alignment. They play an essential role in a scaffold’s overall stability and safety.
Need flexible bay widths or a complete working platform?
For flexible bay configurations, pair these with our extendable scaffold transoms, and complete your working platform with our high-quality new scaffolding boards (225mm x 38mm) that sit perfectly on the 3-, 4-, or 5-board-wide ReadyLok units.
Dimensions and specifications
| Specifications | Dimensions |
| Condition | NEW |
| Sizes Available | 3 Sizes (3, 4 And 5 Scaffold Boards Wide) |
| Scaffold Board Width | 225mm |
| Load Class | 3 |
| Max Working Load | 2.0kN/m2 (General Use), 3.0kN/m2 (Heavy-Duty Use) |
| Weight | 3 Board Wide (8.32kg), 4 Board Wide (8.66kg), 5 Board Wide (9kg) |
| Standard | BS EN12811 |
| Made From | Steel |
Further information

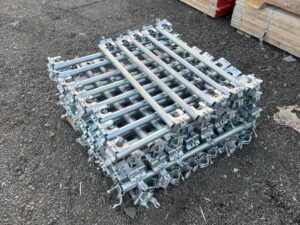

Available in 3 different sizes:
They are available in three sizes intended for use with standard scaffold boards (225mm wide): 3 board wide (8.32kg), 4 board wide (8.66kg), and 5 board wide (9kg). All have a load class of 3 in accordance with BS EN12811 and a safe working load of 2.0 kN/m2 for general purposes and 3.0 kN/m2 for heavy-duty use.
The Readylok transoms have many key benefits, including:
- Quick and easy to install with their integrated locking mechanism, which reduces assembly time.
- They can be used on any type of scaffold, including system, independent, and mobile scaffold towers.
- Using a Readylok transom reduces the number of scaffold fittings and couplers needed and allows 3 tubes to be connected at a time.
- They offer the advantage of eliminating ledger bracing in accordance with NASC TG20, providing clear walkways and increased build efficiency.
Readylok transoms are often used in the following applications:
- Construction for workers and their materials.
- Maintenance for repair work and inspections.
- Industrial to provide access to elevated areas within this environment.
